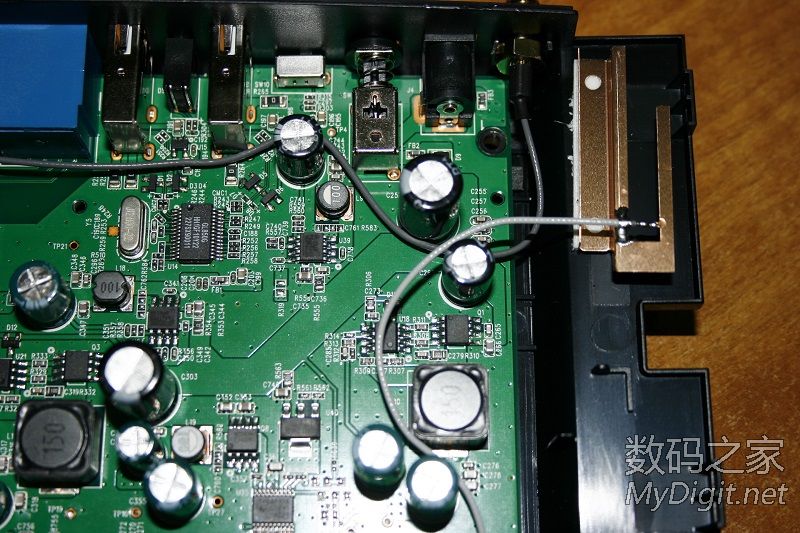

转 tp-link wdr4900 出口版本路由拆机

antons · 发表于 2013-5-15 22:41

本帖最后由 antons 于 2013-5-15 23:05 编辑

图片来源国外

不急不急慢慢看 {:soso__3940829679135332815_7:}

TP-LINK TL-WDR4900 v1

(Est.) release date: 2013
Country of manuf.: China

Type: wireless router

FCC ID: TE7WDR4900
Industry Canada ID: 8853A-WDR4900

Power: 12 VDC, 2.5 A
Connector type: Barrel plug

CPU1: Freescale Semiconductor P1014(800 MHz)
FLA1: 16 MB (Spansion FL128SAIF00)
RAM1: 128 MB (Hynix H5TQ1G63DFR-H9C)

Expansion IF types: USB 2.0
USB ports: 2

WI1 chip1: Atheros AR9580
WI1 802dot11 protocols: an
WI1 MIMO status: 3x3:3
WI1 antenna connector: RP-SMA
WI2 chip1: Atheros AR9381
WI2 802dot11 protocols: bgn
WI2 MIMO status: 3x3:3
WI2 antenna connector: none

ETH chip1: Freescale Semiconductor P1014
Switch: Atheros AR8327N
LAN speed: 10/100/1000
LAN ports: 4
WAN ports: 1

abgn

Third party firmware supported: OpenWrt, DD-WRT

Default IP address: 192.168.0.1
Default login user: admin
Default login password: admin
